Foldable Laser Marking Machine

The foldable laser marking machine combines advanced laser technology with a lightweight folding design, suitable for precise marking of various materials, perfect for the needs of industry, handicrafts and small businesses. Whether it is a production line or a field application, this laser marking machine can provide excellent performance and convenient operation experience.

Introduction

Laser power	10W
Engraving accuracy	0.05mm
Equipment weight	1.95kg
Laser wavelength	455nm
Engraving speed	<600mm/s
Spot size	<0.5mm
Cooling method	air cooling
Engraving size	80*80mm
Host size	211320cm
Packaging size	352514cm
Supported systems	WindowsOS, macOS, Android, ios
Supported formats	JPEG/BMP/PNG/JPG/GIF/DXF/PLT/HPGL

Carefully Crafted

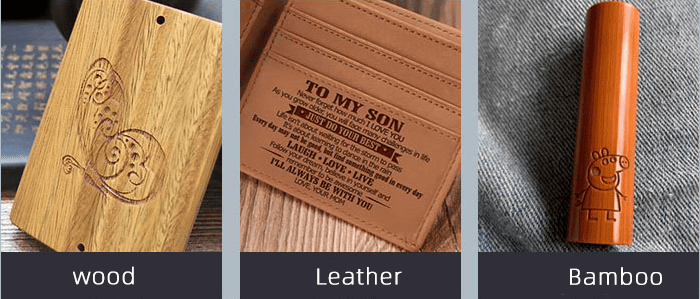

The engraving accuracy can reach 0.05mm, supporting engraving of all paper, wood, leather, most plastics and other materials, making marking faster and more precise.

Foldable Laser Marking Machine 003.png

Material	Engraving	Cutting
Wood	√	≤2mm
Paper	√	≤2mm
Bamboo	√	≤2mm
Leather	√	×
Plastic	√	x
Food	√	x
Ceramics	Color stickers	x
Glass	Color stickers	x
Acrylic	White needs to be painted black	x
Fabric	√	x
Lacquered Metal	√	x

Details

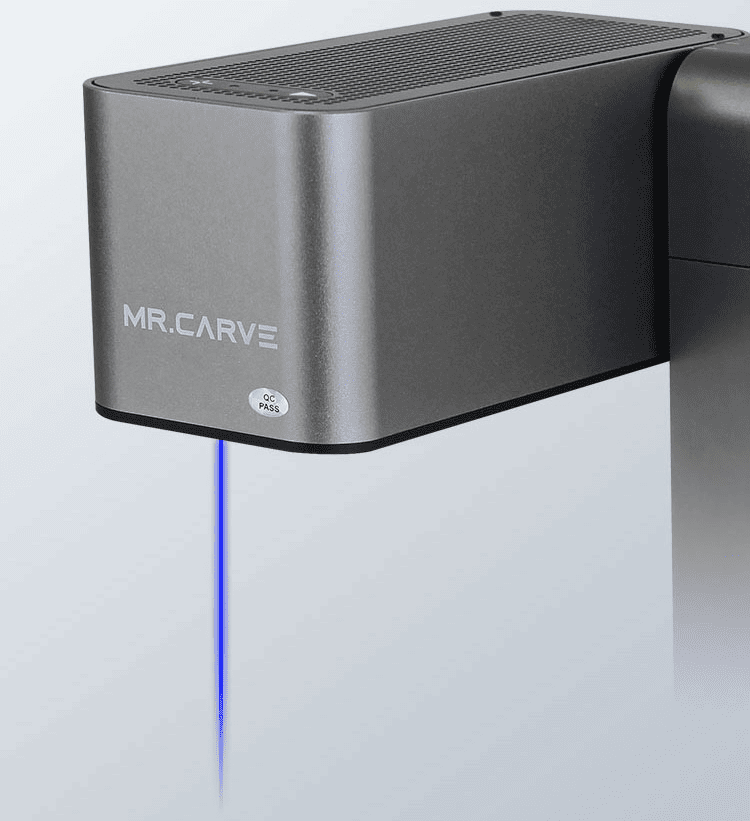

	Integrated galvanometer, Sensitive response Adopting integrated galvanometer design, it can reach >600m/s with field mirror, with sensitive response, good compatibility, and more stable and agile marking.

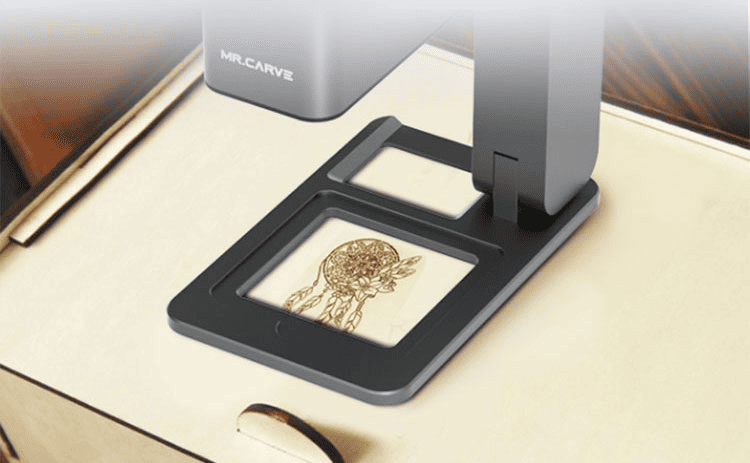

Unrestricted engraving The hollow design of the base plate allows for free placement and allows for direct engraving on the surface of larger objects.

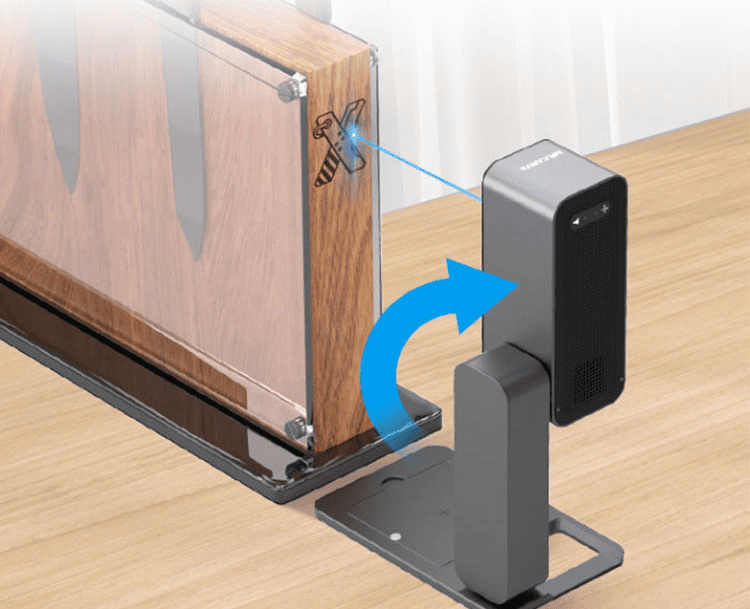

	90° Rotation, More space suitable The machine can be horizontal, vertical, or diagonal at any angle, and can engrave larger straight objects.

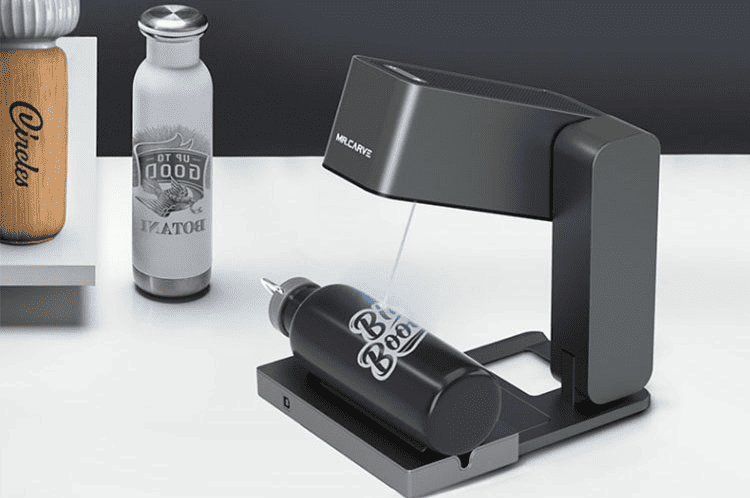

Can carve cylindrical objects Can be used with rollers at horizontal or vertical angles to easily carve large, medium and small objects such as cylinders and curved surfaces.

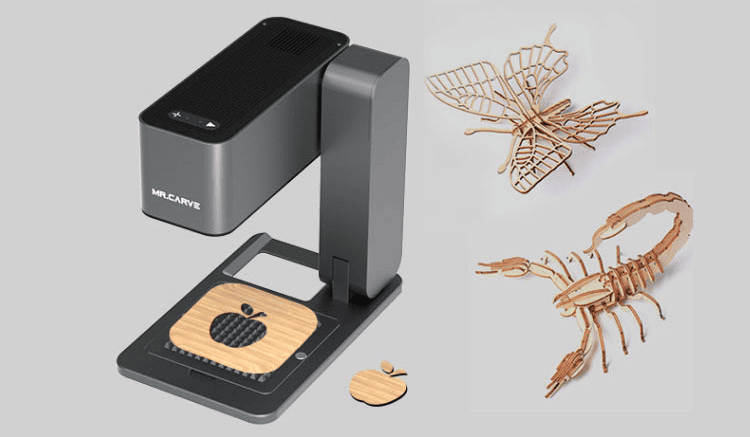

	It can both carve and cut It can cut wood, paper, leather, etc. with a thickness less than 2mm. It comes with a cutting panel and can present the cut object.

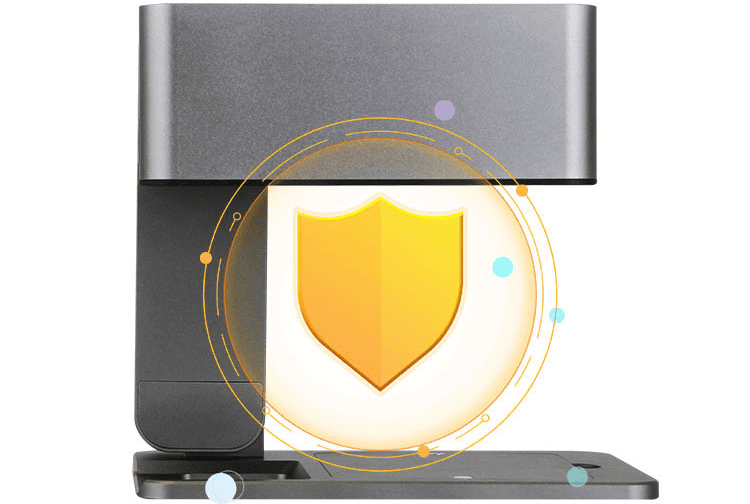

Built-in gyroscope Safety protection When the machine is working, it will automatically stop working if someone picks it up, touches it by mistake, or the machine falls over.

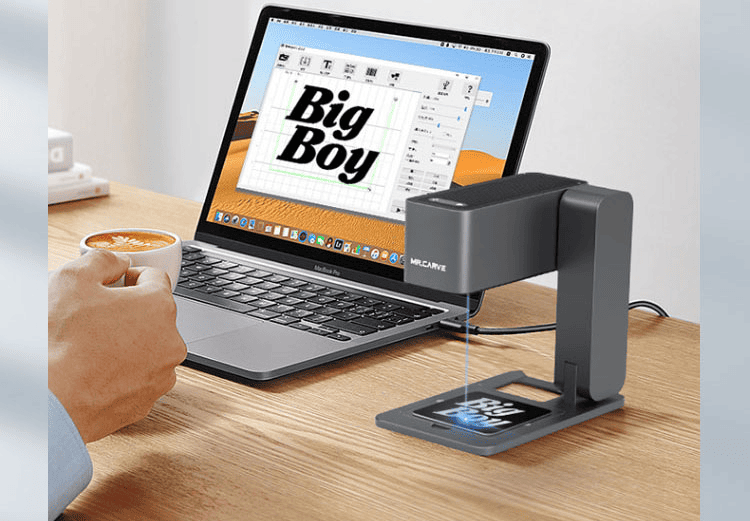

	Intelligent software, more comprehensive functions The software can not only edit pictures, but also automatically generate barcodes and QR codes.

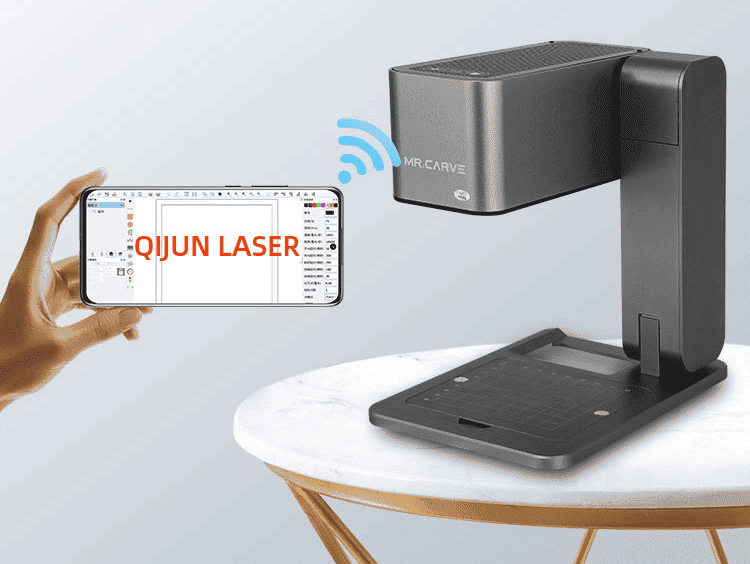

Support mobile phone interconnection Can be operated anywhere without constraints.

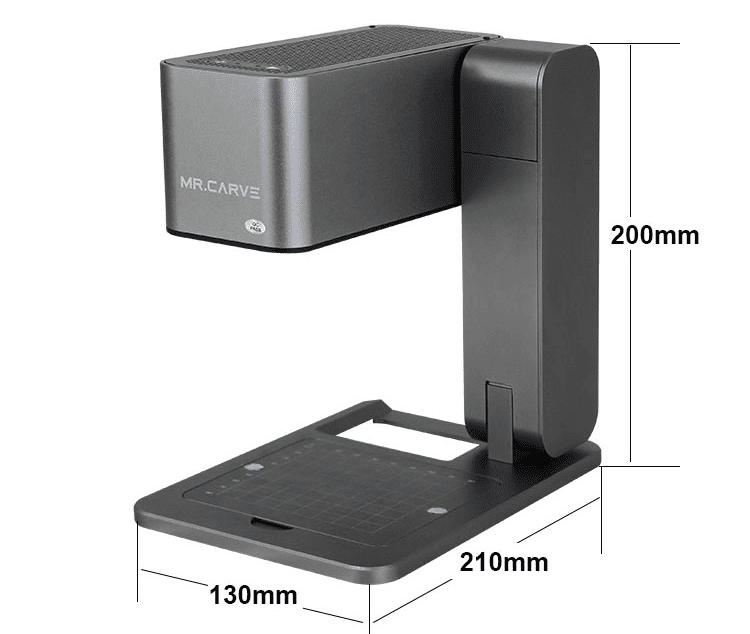

Parameter

Below are the detailed technical parameters of the foldable laser marking machine to help potential customers understand the performance and application scope of the product.

Foldable Laser Marking Machine 013.png

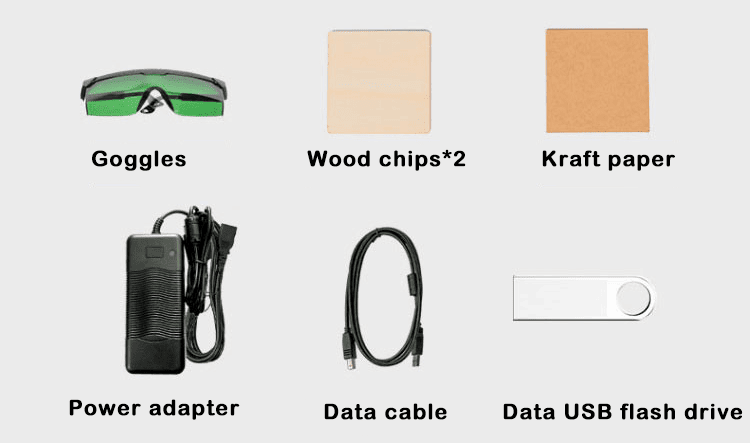

Accessories

The following are the main accessories of the foldable laser marking machine.

Foldable Laser Marking Machine 015.png
