Cabinet CO2 Laser Marking Machine

Our cabinet CO2 laser marking machines are designed for industrial applications and are suitable for high-precision marking of a variety of materials such as wood, plastic, leather, etc. The enclosed design ensures safe operation, and the powerful laser output achieves fast and clear marking results.

Introduction

Product name	CO2 laser marking machine
Laser type	Metal CO2 laser
Working area	110*110mm (customizable)
Accuracy	0.01mm
Output power	20W/30W/60W
Supported system	XP/win7/win8/win10
Supported pictures	PLT, vector graphics files
Engraving size	Text 11mm Letter 0.50.5mm
Voltage environment	220v+10% 50/60 Hz
Engraving depth	<0.3mm (depending on the material)
Engraving speed	7000mm/s
Cooling method	Built-in cold air
Light speed quality	＜2
Total power	500W
Laser wavelength	1064nm

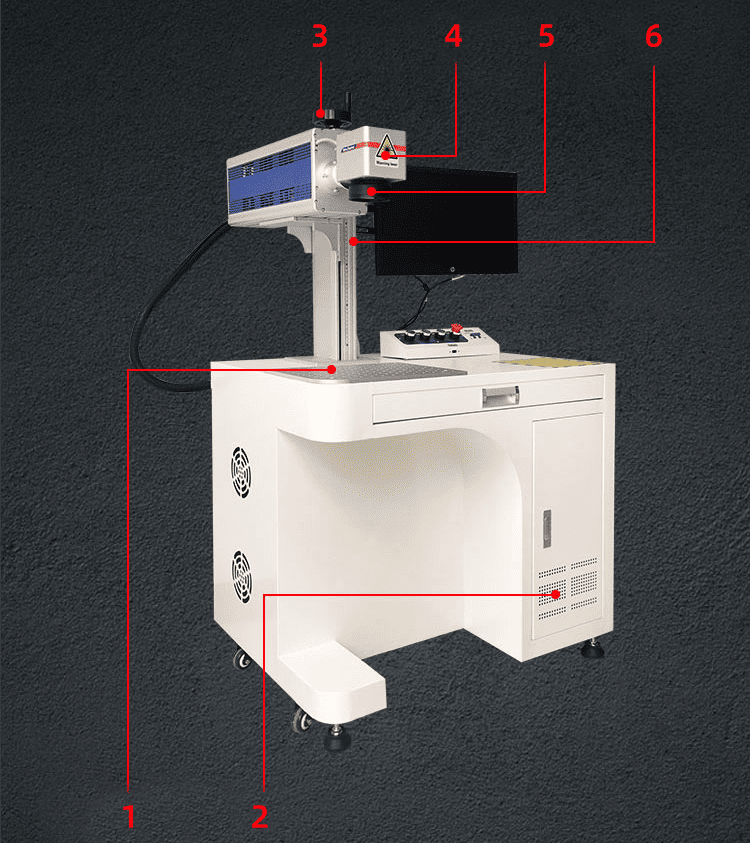

Structures

1. Working platform
2. Heat dissipation hole
3.Lifting axis
4. Galvanometer
5. Field mirror
6. Thickened column

Details

Wide columns
Upgraded, widened and thickened columns, more stable marking
Large table
More convenient operation
Working platform
Encrypted positioning holes, large and small workpieces can be quickly positioned

Cabinet CO2 Laser Marking Machine Structures (2).png

Applications

This cabinet CO2 laser marking machine is suitable for all kinds of materials, such as metal materials, various types of wood, ceramic glass, plastic, etc., with good marking effect, stable and reliable.

Cabinet CO2 Laser Marking Machine Application.png

Applicable materials

Non-metal: wood, bamboo, cork, paper, PE/ABS/PVC and other plastic materials, leather, rubber, acrylic, cloth, etc. (actual testing is required due to different ingredients);
Applicable industries: gift box packaging, yoga mats, handicrafts, furniture, boards, wood, leather processing.

CO2 laser application.png
